[1008] UML대로 구현하기

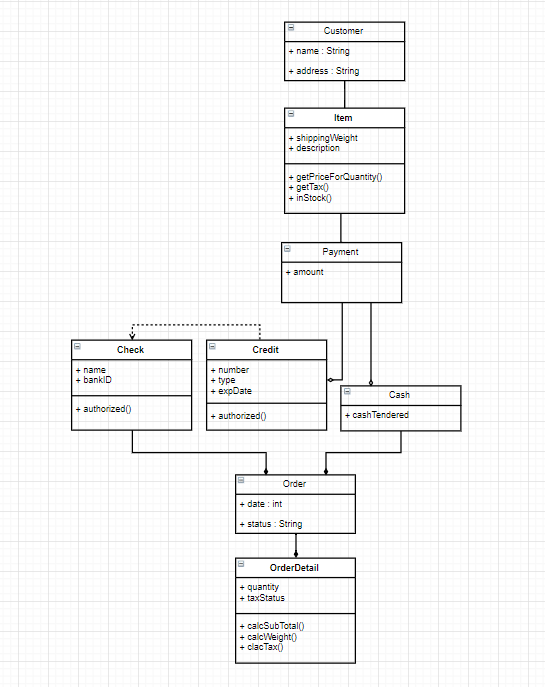

객체지향설계 시간에 UML을 배우고 나서 draw.io 프로그램을 이용해서 직접 관계를 따져 그려보고 이것을 참고해서 아래와 같은 python 코드로 구현하였다. 위의 UML을 그릴 때 표현된 선은 아래와 같은 클래스들의 관계에 따라 선의 종류를 바꿔서 표현하였다.

위의 UML대로 구현한 Python 코드는 아래와 같다.

class Customer:
    def __init__(self, name, address):
        self.name = name
        self.address = address
        print("Your Name : ",self.name)
        print("Your address : ",self.address)

    print ("new Customer's Order")

class OrderDetail:
    def __init__(self, quantity, taxStatus):
        self.quantity = quantity
        self.taxStatus = taxStatus

    def calcSubTotal(self):
        total = self.quantity * 1000
        print("")
        print("SubTotal Prize is ...", total, 'won')

    def calcWeight(self):
        total = self.quantity * 500
        print("Weight is...", total, 'g')

    def clacTax(self):
        total = self.quantity * self.taxStatus
        print("Total taxStatus is...", total, 'won')


class Order:
     def __init__(self, date, status):
         self.date = date
         self.status = status

         print(self.date, " / " ,self.status)
         check = input("show Order Detail?(Y/N) : ")

         if(check == 'Y'):
             odetail = OrderDetail(10, 50)
             odetail.calcSubTotal()
             odetail.calcWeight()
             odetail.clacTax()
         elif(check == 'N'):
             print("")
             print("LOGOUT...")


class Check:
    def __init__(self, name, bankID):
        self.name = name
        self.bankID = bankID

    def authorized(self):
        if((self.name == 'kdh') and (self.bankID == 1234)):
           print("")
           print("ORDER COMPLETE!")
           order = Order("2019-10-08", "Order Complete")
        else:
            print("")
            print("ORDER FAIL... TRY AGAIN NEXT TIME")


class Credit:
    def __init__(self, number, type, expDate):
        self.number = number
        self.type = type
        self.expDate = expDate

    def authorized(self):
        if((self.number == 000) and (self.type == 'check') and (self.expDate == 20191111)):
            print("")
            print("correct Infomation go to Check Page ...")
            print("")
            name = input("your Name? : ")
            bankID = int(input("insert Your ID : "))
            check = Check(name, bankID)
            check.authorized()
        else:
            print("incorrect Information!")
class Cash:
    def __init__(self, cashTendered):
        self.cashTendered = cashTendered
        print("")
        print("you cash is ", self.cashTendered, "won.")
        print("ORDER COMPLETE!")
        order = Order("2019-10-08", "Order Complete")


class Payment:
    def __init__(self, amount):
        self.amount = amount
        print(self.amount)

        if(self.amount == 1):
            number = int(input("get your number : "))
            type = input("card type : ")
            expDate = int(input("car expDate : "))

            credit = Credit(number, type, expDate)
            credit.authorized()
        elif(self.amount == 2):
            cash = int(input("your prize is 10000won.(write down prize won...) : "))
            cash = Cash(cash)
        else:
            print("Choose again")
            x = int(input("your Choose : "))
            p = Payment(x)



class Item:
    def __init__(self, shippingWeight, description):
        self.shippingWeight = shippingWeight #원하는 수량
        self.description = description #재고 수량

    def getPriceForQuantity(self): #총가격
        price = 1000 * self.shippingWeight
        print("That Total price is ", price, 'won')

    def getTax(self): #총세금
        tax = 50 * self.shippingWeight
        print("Tax Total price is ", tax, 'won')

    def inStock(self): #재고수량
        stock = self.description
        print("Goods Stock... ", stock)


#Main

name = input("WELCOME, Customers. Your Name is? : ")
add = input("Your Address is? :")
cus = Customer(name, add)

print("")
print("What do you want to BUY? Please Check Goods List...")
print("1. Milk   2. Orange Juice   3. Mouse   4. KeyBoard   5. Ice Cream")
choose = int(input("choose ONE : "))



if choose == 1:
    thisis = "Milk"
    thisQ = 10
elif choose == 2:
    thisis = "Orange Juice"
    thisQ = 20
elif choose == 3:
    thisis = "Mouse"
    thisQ = 30
elif choose == 4:
    thisis = "KeyBoard"
    thisQ = 40
elif choose == 5:
    thisis = "Ice cream"
    thisQ = 50

print("you Choose", thisis , ", How much Quantity you want? : ")
quan = int(input("Quantity : "))
item = Item(quan, thisQ)
item.getPriceForQuantity()
item.getTax()
item.inStock()

print("")
ans = input("Do you want to buy this?(Y/N) : ")

if(ans == 'Y'):
    print("")
    print("Please Choose Payment method")
    print("1. Credit")
    print("2. Cash")
    x = int(input("you Answer? : ")) #값 입력받기
    payment = Payment(x)
elif(ans == 'N'):
    print("See YOU Next Time!")



원래는 추상적인 클래스들의 정보만 제공이 되고 구체적인 동작은 제시해주지 않았기 때문에 UML을 구현한대로 내가 만들고 싶은 동작대로 구현을 해 보았다. Python에 조금이나마 익숙해진 것 같아 좋은 경험이 되었다.

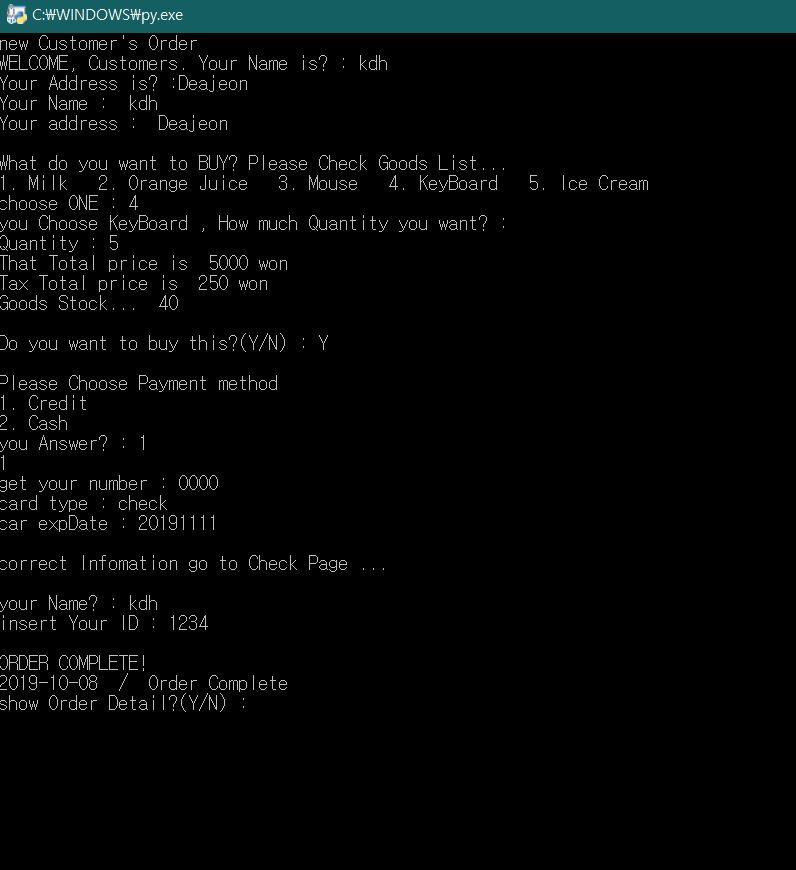

아래에 첨부된 사진은 위의 코드를 동작시켰을 때 UML대로 관계를 가지고 순차적으로 실행되는 것을 볼 수 있다.
